Trilogy Metals Announces Metallurgical, Geotechnical and Hydrogeological Results From Arctic Deposit
VANCOUVER, April 19, 2017 /CNW/ - Trilogy Metals Inc. (TSX, NYSE-MKT: TMQ) ("Trilogy Metals" or "the Company") is pleased to announce the results of a recently completed metallurgical test work program using sample material from the Arctic deposit collected during the 2016 field season. This metallurgical test program was carried out as a follow-on program to confirm previous metallurgical results completed in 2012 and in support of advancing the project to a pre-feasibility study ("PFS") planned for completion in Q1 2018.
Highlights – Recoveries and Concentrate Grades Improved from Previous Study
- Copper recoveries improved from 87% to 92%
- Zinc recoveries improved from 87% to 88%
- Copper concentrate average grade remains high at 29%
- Zinc concentrate average grade improves from 56% to 60%
- In-pit geotechnical and hydrology studies are now completed to a PFS level
The results demonstrate that excellent recoveries and clean concentrates of copper and zinc can be generated from the polymetallic copper-lead-zinc-gold-silver ores at Arctic. Concentrates of copper recovered an average of 91.7% of the copper and formed a concentrate averaging 28.7% copper metal. Concentrates of zinc recovered an average of 87.8% of the zinc and formed a concentrate averaging 60% zinc metal. Neither concentrate contains significant deleterious penalty metals and are considered excellent quality by world standards. The lead concentrate contains significant precious metals and is still undergoing further test work to determine optimal recoveries for lead, gold and silver.
The Arctic deposit is a high-grade copper-zinc-lead volcanogenic massive sulfide deposit which also contains significant amounts of precious metals. The Company is proposing a 10,000 tonne per day, open pit mining operation with a typical crush-grind-float flow sheet producing significant tonnages of copper and zinc concentrates and lessor lead concentrate containing significant quantities of precious metals. The mineralized material from Arctic has been shown to be amenable to traditional flotation methods for the production of saleable base-metal concentrates. The results of this recent test work program, completed by ALS Metallurgy of Kamloops, Canada, were in-line with previous results reported in the Company's National Instrument 43-101 - Standards of Disclosure technical report entitled "Preliminary Economic Assessment Report on the Arctic Project, Ambler Mining District, Northwest Alaska" dated effective September 12, 2013 (the "PEA") (see press release dated September 12, 2013) and will support a PFS to be completed in Q1, 2018.
Rick Van Nieuwenhuyse, President and CEO of Trilogy Metals commented, "We are very pleased with the results of this metallurgical test work program at Arctic. Recoveries and concentrate grades for our two principle metals – copper and zinc are excellent. We are currently conducting additional test work to determine the optimal recoveries of our three other metals – lead, gold and silver, and will report on that work in due course. In combination with recently completed structural, hydrological and geotechnical work, we are well poised to kick-off the approved 2017 plan and budget and complete a PFS on Arctic in Q1 of 2018. The PFS will demonstrate the true value of the high-grade Arctic deposit which we expect will be the first in a series of potential mines in the Ambler mining district. With the recent announcement that the BLM has initiated the permitting process on the AMDIAP; our recently announced option agreement with South32 whereby they will fund a $10 million program at our Bornite deposit in 2017; and an upswing in demand for copper and zinc, the Company is well positioned to add value for shareholders by advancing development of the Ambler mining district."
The revenue stream in the PEA (see figure 1 below) showed that copper produced 60% of the revenue stream, with zinc contributing 21%, silver at 9% and gold at 6%. Lead was the least valuable of the metals and is still undergoing further test work to determine optimal recoveries for lead, gold and silver. Neither the zinc nor the copper concentrates contain any significant deleterious penalty metals and are considered excellent quality by world standards.
A total of four diamond drill holes were completed during the 2016 field program to provide whole core for sample materials in this test work program. Drilling targeted the first seven years of planned mine production from the Arctic deposit and provided 14 major mineralized intercepts for use in the test work program.
The metallurgical flow sheet envisions a truck and shovel open-pit mining operation followed by a traditional crush-grind-float processing facility. Grinding test work completed on the 14 mineralized intercepts confirmed the material to be soft to moderate in terms of Bond Work Index characterization. Bond Ball Mill work index averaged 7.6kWhr/tonne, with a maximum value of 10.3 and minimum value of 5.3.

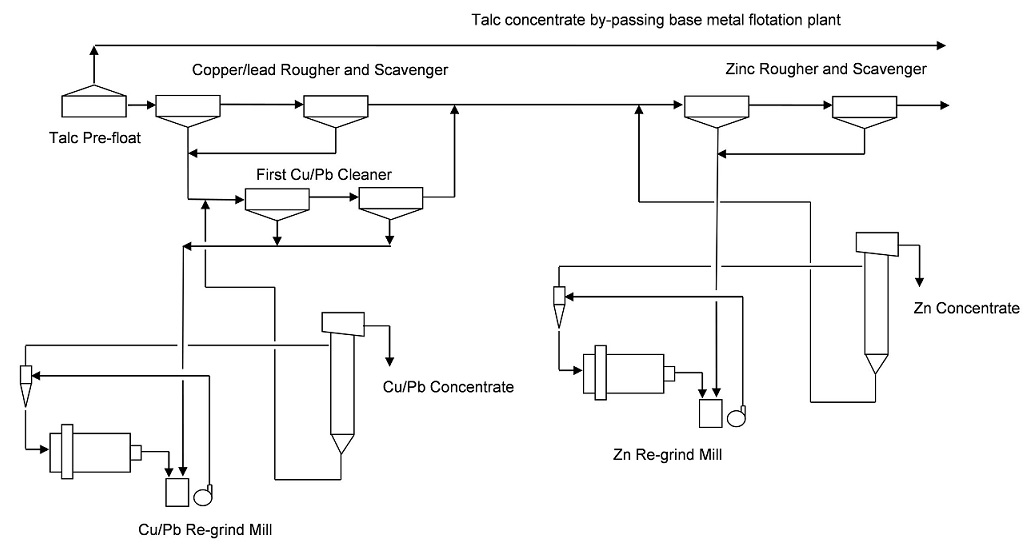

A composite sample of approximately 600 kilograms was prepared from the mineralized intercepts and used for metallurgical concentration test work. This composite sample was used in bench scale testing to confirm the performance of the previously defined flotation process; as well, a large volume of the sample was processed in a pilot plant to provide sufficient volumes of a copper-lead bulk concentrate to complete detailed copper and lead separation test work. A flowsheet of the Arctic flotation process is shown in Figure 2.
Metallurgical test work, as shown in Table 1, reflects good recovery and upgrading of copper, lead and zinc values. The Arctic deposit contains talc, a naturally hydrophobic mineral. Talc is recovered via flotation prior to base metals flotation. Copper and zinc losses associated with the talc concentrate are less than one percent of the overall base metals. Copper and zinc concentrates as defined in this test work program are considered to be excellent in terms of concentrate grades. The lead concentrate which contains significant precious metals will be subject to further economic analysis and possibly additional metallurgical testing for the recovery of precious metals.
Table 1: Arctic Deposit – Overall Metallurgical Performance (Bulk Sample)
Geotechnical & Hydrology Update
In spring of 2015, Trilogy Metals contracted SRK Consulting (Canada) Inc. to initiate open pit geotechnical and hydrogeological field investigations to achieve prefeasibility level design for the Arctic Project. SRK's scope of work consisted of three broad phases, spanning two years of staged technical investigations.
- Phase 1 focussed on data collection by means of a field investigation program tied to the Arctic 2015 and 2016 exploration drilling programs. Geotechnical information collected from the drilling programs included geotechnical rock mass classification data from oriented drill core, testing of drill core for laboratory-derived rock properties, and downhole acoustic and optical televiewer surveying. Hydrogeological testing included packer testing, installation and monitoring of new and existing instrumentation within the proposed open pit area, airlift testing and seepage surveys. As input for the engineering studies, SRK also completed a structural geology study, and developed a fault model based on field mapping, surface LiDAR data interpretation, drill hole logging and a 3D geology model provided by Trilogy staff.
- Phase 2 undertook advanced geotechnical and hydrogeological characterization and analyses, which resulted in the identification of six relevant geotechnical design sectors for the planned open pit.
- Phase 3 included kinematic analyses, numerical modelling of representative pit sections and derivation of overall, inter-ramp and bench scale slope design recommendations for each geotechnical design sector.

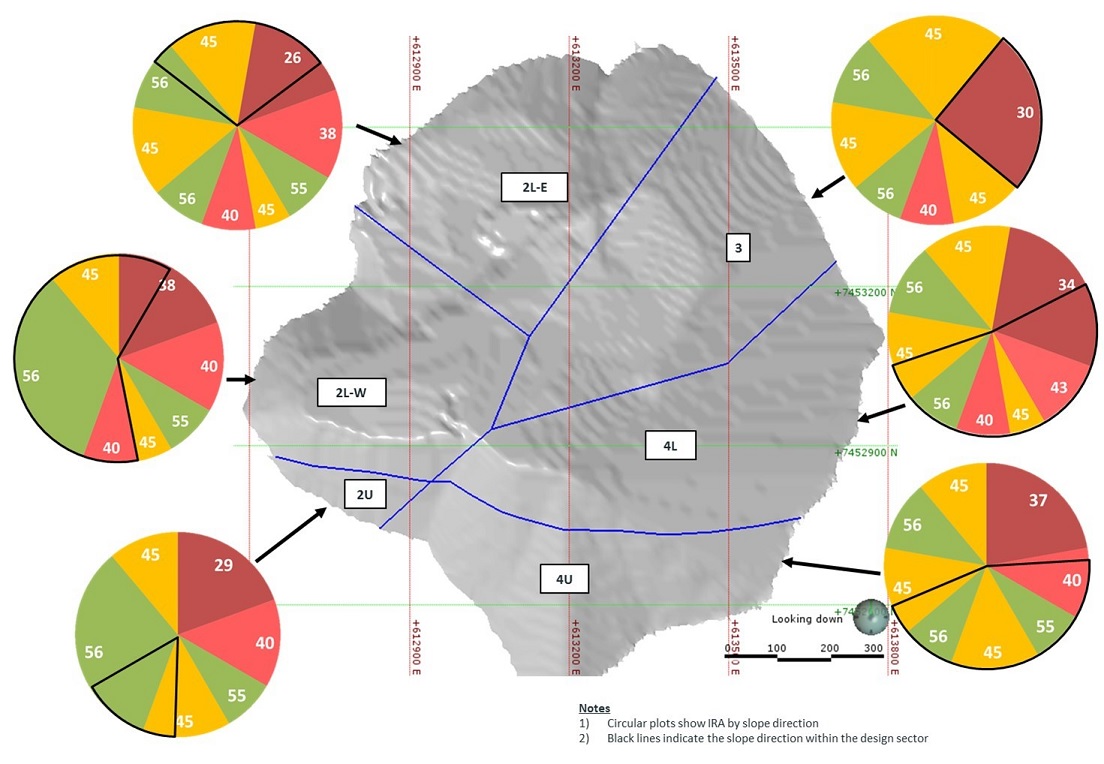

Final inter-ramp angles per design sector vary depending on the slope direction within the design sector, but in general are 26 to 56 degrees (see Figure 3). We are pleased to report that SRK completed a final report documenting the structural, hydrological and geotechnical work in February 2017 – this completes the work package to a Pre-feasibility level of study.
The metallurgical information in this news release has been prepared in accordance with Canadian regulatory requirements set out in National Instrument 43-101 Standards of Disclosure for Mineral Projects of the Canadian Securities Administrators ("NI 43-101") and supervised and reviewed by Jeffrey B. Austin, P.Eng., President, of International Metallurgical and Environmental Inc., a "Qualified Person" as defined in National Instrument 43-101 and the person who oversees metallurgical developments for Trilogy Metals.
The 2015 and 2016 geotechnical and hydrological field investigations, technical analysis and slope design recommendations were completed by Qualified Persons employed by SRK Consulting (Canada) Inc. of Vancouver, Canada. Bruce Murphy P.Eng., Principal Consultant with SRK, is a Qualified Person as defined by National Instrument 43-101. Mr. Murphy has reviewed the geotechnical and hydrological technical information in this news release and approves the disclosure contained herein.
