Torex Gold Announces Maiden Mineral Reserves for ELD Underground
TORONTO, June 20, 2019 (GLOBE NEWSWIRE) -- Torex Gold Resources Inc. (the “Company” or “Torex”) (TSX: TXG) announces a maiden underground mineral reserve estimate and resource estimate for the El Limón Deep zone (“ELD”) at its El Limón Guajes mining complex (“ELG”), located in Southwest Mexico. The estimates were prepared in accordance with National Instrument 43-101 (“NI 43-101”) and CIM Standards (defined below).
ELD Mineral Reserves and Resources
- The probable mineral reserve at ELD contains 86,000 Au ounces in 487,000 tonnes at an average Au grade of 5.50 g/t, with a cut-off grade of 3.70 g/t.
- The mineral reserve is a subset of an indicated mineral resource at ELD that contains 141,000 Au ounces in 797,000 tonnes at an average Au grade of 5.52 g/t, with a 2.5 g/t cut-off grade.
- The conversion rate of indicated mineral resources (at the reserve cut-off grade) to probable mineral reserves is estimated at 72% for Au ounces and 86% for tonnes.
- The mineral resource is the downdip extension of mineralization in the El Limón open pit. It is located approximately 400 meters north-northwest of the Sub-Sill deposit and is open in three directions.
Fred Stanford, President and CEO of Torex, stated:
“This addition of the ELD mineral reserves, while small in comparison to the open pit mineral reserves, provides a nice sweetener to the open pit production. It is also indicative of the potential to add further underground mineral resources. With ELD open in three directions, the Sub-Sill underground deposit still open at depth, and the potential for down dip extensions of Guajes, we are upbeat about the potential to further expand underground reserves and resources through multiple sources.
“The mineral reserves for the ELD deposit have been estimated using conventional mining techniques and costs. The intention is to mine the deposit with the Muckahi mining system. If as expected, the costs associated with Muckahi mining are lower than conventional mining costs, we may be able to lower the cut-off grade and increase the size of the mineral reserve. Excavation of the 30-degree down ramp to access the lower parts of the ELD deposit is underway, with 4 rounds taken. In the upper portions of the deposit, the excavations are nearly completed for the initial long hole stopes that will be mined utilizing the production aspects of the Muckahi system. To date the Muckahi system has performed as expected, we are all eager to progress through the next stages of the testing program, and if proven, then move forward with the strategic options it has the potential to unlock.”
Mineral Reserve Statement, ELD Underground, April 2019
|Proven & Probable||487||5.50||6.44||86||101|
Notes to accompany ELD Zone Underground Mineral Reserve Table:
The underground ELD mineral reserves are based on a three-dimensional mine design assuming conventional overhand mechanized cut and fill (“cut and fill”) mining method. The mine was designed and scheduled in Deswik® software suite, a commercially-available mine planning software package. The mine plan physicals were estimated by interrogating the three-dimensional mine designs against the resource block model to which factors for dilution and mining losses have been applied. The delineation of reserves for ELD has not impacted reserves from within the El Limón open pit.
ELD will be accessed through the existing underground development and will utilize the existing site infrastructure. This infrastructure includes, but is not limited to, electrical facilities, maintenance facilities, main ventilation exhaust fans and the backfill plant. Depending on material availability and geotechnical requirements, all mining areas at the ELD will be backfilled with either cemented aggregate fill or uncemented rockfill.
The mine plan is expected to deliver 487,000 tonnes and 86,000 ounces to the ELG processing facility at an average grade of 5.50 g/t Au. ELD is expected to supplement existing ELG underground mine production. The crown pillar below the El Limón open pit will be mined and backfilled well in advance of surface operations.
Maximum mining rates in the plan are estimated at 800 tonnes per day. Mining costs are estimated to be US$85.6/tonne plant feed, based on conventional mining methods. Total capital requirements are estimated to be US$13.5 million, of which US$10.5 million is allocated for lateral and vertical development.
Mineral Resource Statement for ELD Underground
|Measured & Indicated||797||5.52||6.62||141||170|
Notes to accompany ELD Zone Underground Mineral Resource Table:
The ELD zone occurs in the northwest portion of El Limón deposit, which is part of the large gold bearing skarn system of ELG, located in the central part of the Guerrero Gold Belt in Southwest Mexico. The ELG deposit is hosted in Mesozoic-age rocks of the Morelos Platform, which have been intruded by Paleocene granodiorite stocks, sills, and dikes. Skarn-hosted gold mineralization is developed along the contacts of the intrusive rocks with carbonate-rich sedimentary host rocks of the Cuautla and Morelos formations. ELD represents the down-dip extension of the gold mineralization targeted in the El Limón open pit and is located directly below the deepest part of the El Limón final pit.
The style of mineralization at ELD is similar to the mineralization in the other mineralized zones within the ELG deposit. It is characterized by a strong association with bismuth and variable amounts of silver and copper. Gold occurs in variably sulfidized, pyrrhotite-rich skarn, while silver and copper mineralization is primarily determined by the degree of sulfidation of the host skarn. Mineralization is associated with retrograde alteration characterized by amphibole, calcite, and quartz, with lessor amounts of chlorite ± epidote. This alteration affects the pyroxene-garnet exoskarn and granodiorite-related endoskarn. Locally, mineralization occurs in narrow lenses of massive sulfide.
Mineralization of the ELD zone is juxtaposed on either side of the Flaca fault, a major structure that strikes north-easterly and transects the El Limón deposit. The fault separates mineralization with a shallow, approximately 30° dip in the southeast of the fault from steeply dipping mineralization northwest of the fault.
Mineralization remains open along strike especially to the southwest and downdip to the northwest. Additional mineral potential is envisaged in the multiple skarn zones identified at depth. Additional step-out drilling is ongoing, and additional results will be incorporated into future resource updates.

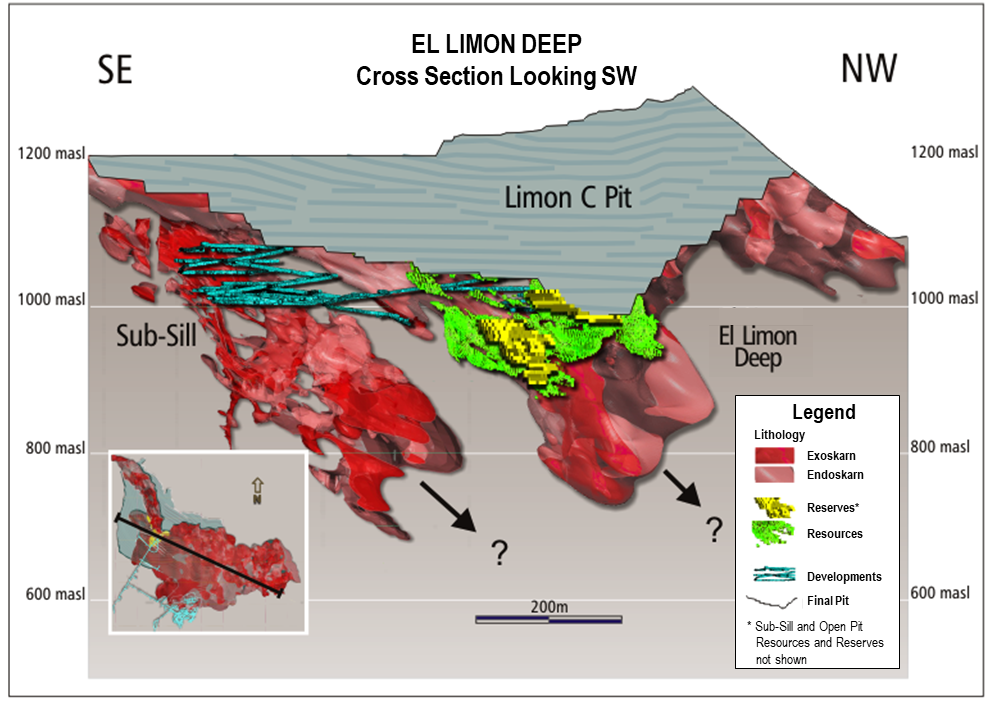

For a cross section of ELD refer to Figure 1.
Mineral Resource Estimate Methodology
The mineral resource is informed by drilling (surface and underground) that include assays received up to March 31, 2019. Of the approximately 2,120 holes (281,300m) completed on the ELG project between 2000 and 2019; a total of 209 holes (52,441m) is located in the ELD mineral resource area and was considered for estimation. Assays were composited into 2-metre lengths within lithological grade domains for estimation into 2-metre cubic blocks. Leapfrog Edge, a commercially-available geologic and block modelling software package, was used to produce a three-dimensional block model. Specific gravity was assigned by rock type and gold grade. Block grades were estimated in three estimation passes with increasingly relaxed search parameters using ordinary kriging and hard boundaries for gold, silver, and copper. Treatment of high-grade gold samples include capping and further restriction of grades beyond a narrow search ellipsoid. Silver and copper assays were not capped. Mineral resources consider geologic, mining, and processing constraints. Mineral resources are classified in accordance with the 2014 CIM Definition Standards for Mineral Resources and Mineral Reserves and the 2003 CIM Estimation of Mineral Resources and Mineral Reserves Best Practice Guidelines (collectively, the “CIM Standards”).
The mineral resources for ELD are stated below the mineral reserve pit of the El Limón deposit and overlap the mineral resources amenable for open pit extraction and disclosed publicly in the annual information form for the year ended December 31, 2018 and dated March 29, 2019. Reporting of mineral resources amenable for underground extraction removes approximately 170 kt (10 koz Au), 2,360 kt (190 koz Au), and 420 kt (40 koz Au) from open pit resources (reported at a 0.7 g/t gold cut-off grade) in the measured, indicated, and inferred categories, respectively.
QA/QC and Qualified Persons
Torex maintains an industry-standard analytical QA/QC and data verification program to monitor laboratory performance and to ensure high quality assay results. Results from this program confirm reliability of the assay results. All sampling and analytical work for the infill exploration program is performed by SGS de Mexico S.A. de C.V. (“SGS”) in Durango, and in SGS in Nuevo Balsas, Mexico. Gold analyses comprise fire assays with atomic absorption or gravimetric finish. External check assays for QA/QC purposes are performed at ALS Chemex de Mexico S.A. de C.V.
The analytical QA/QC program is currently overseen by Carlo Nasi, Chief Mine Geologist for Minera Media Luna, S.A. de C.V.
The scientific and technical data contained in this news release, including the information pertaining to the ELD exploration program and the mineral resource estimates, have been reviewed and approved by Lars Weiershäuser, PhD, PGeo. Dr. Weiershäuser is a “Qualified Person” as defined by NI 43-101, and he is a member of the Association of Professional Geoscientists of Ontario (APGO#1504), has experience relevant to the style of mineralization under consideration, and is an employee of Torex. Dr. Weiershäuser has verified the data disclosed, including sampling, analytical, and test data underlying the drill results, and he consents to the inclusion in this release of said data in the form and context in which they appear.
The scientific and technical data contained in this news release pertaining to the ELD mineral reserves has been reviewed and approved by Mr. Clifford Lafleur, P.Eng who is a Qualified Person as defined by NI 43-101 and an employee of the Company. Mr. Lafleur is a registered member of the Professional Engineers of Ontario, has worked the majority of his career in underground hard rock mining in Canada and Mexico in progressively senior engineering roles with relevant experience in mine design and planning, mining economic viability assessments and mining studies.
Additional information on the ELD deposit, sampling and analyses, analytical labs, and methods used for data verification is available in the Company’s most recent annual information form and the technical report entitled “Morelos Property, NI 43-101 Technical Report, ELG Mine Complex, Life of Mine Plan and Media Luna Preliminary Economic Assessment, Guerrero State, Mexico” with an effective date of March 31, 2018 (filing date September 4, 2018) (the “Technical Report”) filed on SEDAR at www.sedar.com and the Company’s website at www.torexgold.com.
